Guarantee 15 Year Guarantee
4 Star WELS rating WELS 4 STAR - 4.5L/min per full flush, 3L/per half flush
Weight Tested Weight Tested to 400kg
BPIR - Importer Robertson NZ Ltd.
BPIR - Place of Manufacture China

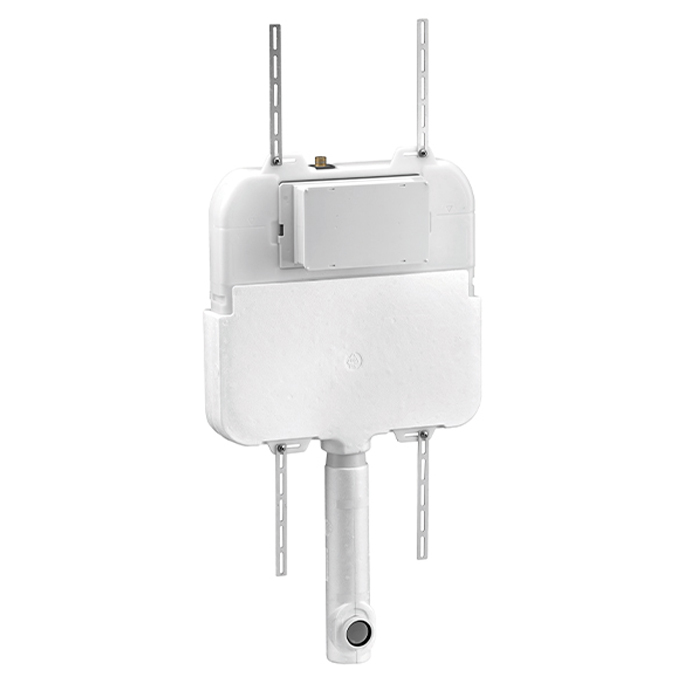

BPIR - Scope of use Inwall cisterns and brackets are concealed cistern systems installed within walls, providing a minimalist look and saving bathroom space.
BPIR - NZS 4121:2001 Toilets This product complies with Building Code Regulation NZS 4121:2001 Access & Mobility - Toilets
BPIR - B2.3.1 Durability This product complies with Building Code Regulation B2.3.1 Durability
BPIR - G1.2.2 Flushing Systems This product complies with Building Code Regulation Personal Hygiene - Flushing Systems
Additional Information The bracket should be mounted flush with the timber framing so the Villa board will be hard against the bracket. NB failure to do this may cause the wall to move and tiles to crack.
Additional Information If necessary strengthen the wall using additional horizontal or vertical nogs and also additional fixings at floor and ceiling.
Additional Information Once the Bracket has been installed, the wall framing should be tested for any deflection. There should not be any deflection.
Additional Information The Wall Studs should be nogged in a minimum of three places spaced equally between floor and ceiling.
Additional Information The minimum size of Timber framing and Grade is 100mm x 50mm Radiata MSG8, K/D, H1.2, M/g
Additional Information The Top and Bottom Timber Framing Plates must be well secured with no movement.
Additional Information If using a wall hung pan the wall lining must be a material such as Villa board with a minimum thickness of 9mm.
