Residential/Light Commercial Use Suitable for Residential/Light Commercial Use (Kitchens, Bathrooms and Laundries in Hotels, Motels and Retirement Villages).
Guarantee 15 Year Guarantee
4 Star WELS rating (Toilets) Allows for a 4.5 litre large flush and a 3 litre half flush
BPIR - Importer Robertson NZ Ltd.
BPIR - Place of Manufacture China

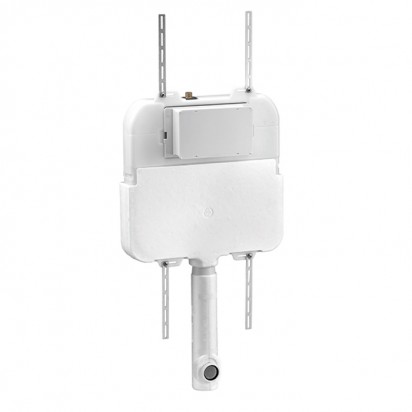

BPIR - Scope of use Inwall cisterns and brackets are concealed cistern systems installed within walls, providing a minimalist look and saving bathroom space.
BPIR - NZS 4121:2001 Toilets This product complies with Building Code Regulation NZS 4121:2001 Access & Mobility - Toilets
BPIR - B2.3.1 Durability This product complies with Building Code Regulation B2.3.1 Durability
BPIR - G1 AS1 2.4 Bidets This product complies with Building Code Regulation G1 AS1 2.4 Personal Hygiene - Bidets
BPIR - G1.2.2 Flushing Systems This product complies with Building Code Regulation Personal Hygiene - Flushing Systems
Additional Information The bracket should be mounted flush with the timber framing so the Villa board will be hard against the bracket. NB failure to do this may cause the wall to move and tiles to crack.
Additional Information If necessary strengthen the wall using additional horizontal or vertical nogs and also additional fixings at floor and ceiling.
Additional Information Once the Bracket has been installed, the wall framing should be tested for any deflection. There should not be any deflection.
Additional Information The Wall Studs should be nogged in a minimum of three places spaced equally between floor and ceiling.
Additional Information The minimum size of Timber framing and Grade is 100mm x 50mm Radiata MSG8, K/D, H1.2, M/g
Additional Information The Top and Bottom Timber Framing Plates must be well secured with no movement.
