END OF LINE PRODUCT
NOTE:
Includes revison plate for larger faceplates
Downloads
Downloads for 39596000
Residential/Light Commercial Use Suitable for Residential/Light Commercial Use (Kitchens, Bathrooms and Laundries in Hotels, Motels and Retirement Villages).
Guarantee 1 Year Guarantee (Working parts and fittings)
Guarantee 10 Year Guarantee (Tank only)
Weight Tested Weight Tested to 400kg
BPIR - Importer Robertson NZ Ltd.
BPIR - Place of Manufacture Germany

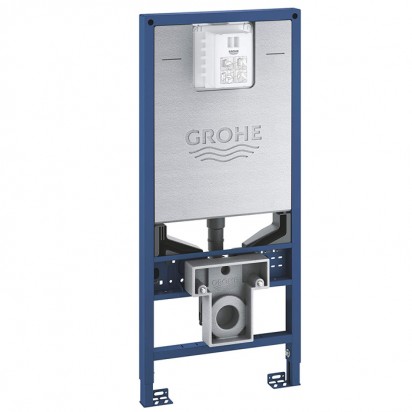

BPIR - Scope of use Inwall cisterns and brackets are concealed cistern systems installed within walls, providing a minimalist look and saving bathroom space.
BPIR - B2.3.1 Durability This product complies with Building Code Regulation B2.3.1 Durability
Additional Information The bracket should be mounted flush with the timber framing so the Villa board will be hard against the bracket. NB failure to do this may cause the wall to move and tiles to crack.
Additional Information If necessary strengthen the wall using additional horizontal or vertical nogs and also additional fixings at floor and ceiling.
Additional Information Once the Bracket has been installed, the wall framing should be tested for any deflection. There should not be any deflection.
Additional Information The Wall Studs should be nogged in a minimum of three places spaced equally between floor and ceiling.
Additional Information The minimum size of Timber framing and Grade is 100mm x 50mm Radiata MSG8, K/D, H1.2, M/g
Additional Information The Top and Bottom Timber Framing Plates must be well secured with no movement.
